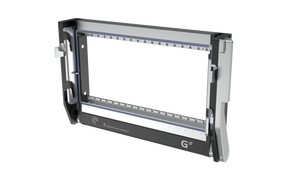

- 商品名称：VPC,410104181,ITA, 9050, 50 Module, VXI and Discrete Wiring, Double Tier
- 商品编号：VPC_410104181
- 店铺：网站自营
The 50 Module ITA can be used in a number of applications to accomplish the required connection to the Unit Under Test (UUT). You can mount a VPC Enclosure or customize your own fixture to be attached on the frame. A wide range of ITA modules are available separately for user configuration.
| Specifications |
|
| Weight |
8.25 lbs. [3.75 kg] |
| Frame Material |
Chromated Aluminum |
| Available Module Slots |
50 Positions |
| Cycle Life |
20,000 Cycles |
| Temperature |
-55ºC to 85ºC |
| Max. Mating Force |
2133 lbs. [967.5 kg] |
