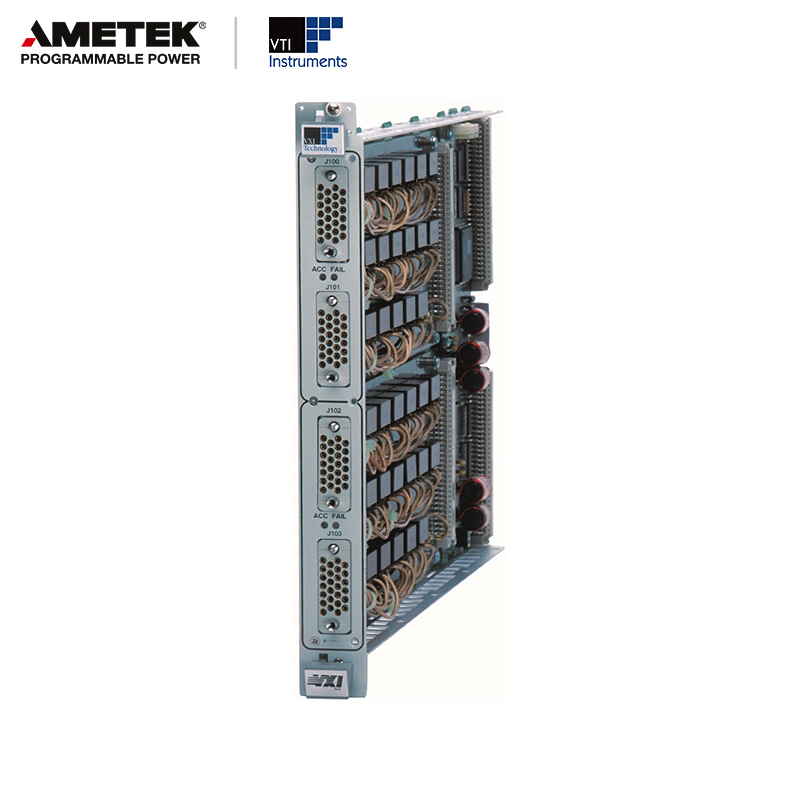

The SMP6103 is a very high-density coaxial tree, and is designed for high-fidelity RF switching applications up to 750 MHz. Excellent crosstalk and isolation is maintained by using RF relays with bandwidths in excess of 2.0 GHz, along with short low-loss coaxial runs from the connector directly to the relays.
All modules are also configured to avoid any unterminated stub effects, improving overall signal integrity and allowing for larger high-frequency multiplexer configurations while maintaining bandwidth and VSWR. The front panel contains two high-density, 26-pin coaxial connectors designed for high reliability and superior signal integrity.
The SMP6103 is part of the SMIPII™ family and can be mixed and matched with other SMIPII™ modules to configure high-density switching systems. For example, approximately 180 50 ohm coaxial switch points can be switched within a double slot VXI card (SMP1200), providing exceptional density without degrading signal integrity.
All modules are also configured to avoid any unterminated stub effects, improving overall signal integrity and allowing for larger high-frequency multiplexer configurations while maintaining bandwidth and VSWR. The front panel contains two high-density, 26-pin coaxial connectors designed for high reliability and superior signal integrity.
The SMP6103 is part of the SMIPII™ family and can be mixed and matched with other SMIPII™ modules to configure high-density switching systems. For example, approximately 180 50 ohm coaxial switch points can be switched within a double slot VXI card (SMP1200), providing exceptional density without degrading signal integrity.
