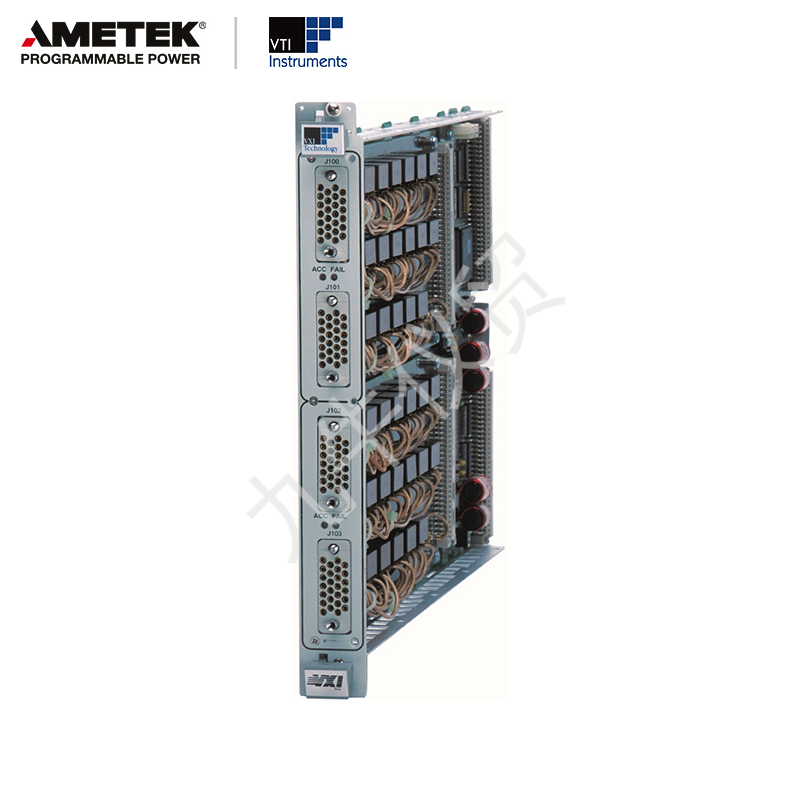

The SMP6001 high-density (1x4) coaxial tree and SMP6002 high-density (1x2) coaxial switch modules are designed for general purpose RF switching. The front panel contains two high-density, 26-pin coaxial connectors designed for high reliability and superior signal integrity. Excellent crosstalk and isolation is maintained by using RF relays, along with short low-loss coaxial runs from the connector directly to the relays. Both modules are also configured to avoid any unterminated stub effects.
The SMP6001 and SMP6002 are part of the SMIPII™ family and can be mixed and matched with other SMIPII™ modules to configure high-density switching systems.
The SMP6001 and SMP6002 are part of the SMIPII™ family and can be mixed and matched with other SMIPII™ modules to configure high-density switching systems.
